Discover DOmini, the all-in-one digital oscilloscope and management software. A powerful, compact solution for modern electronics.

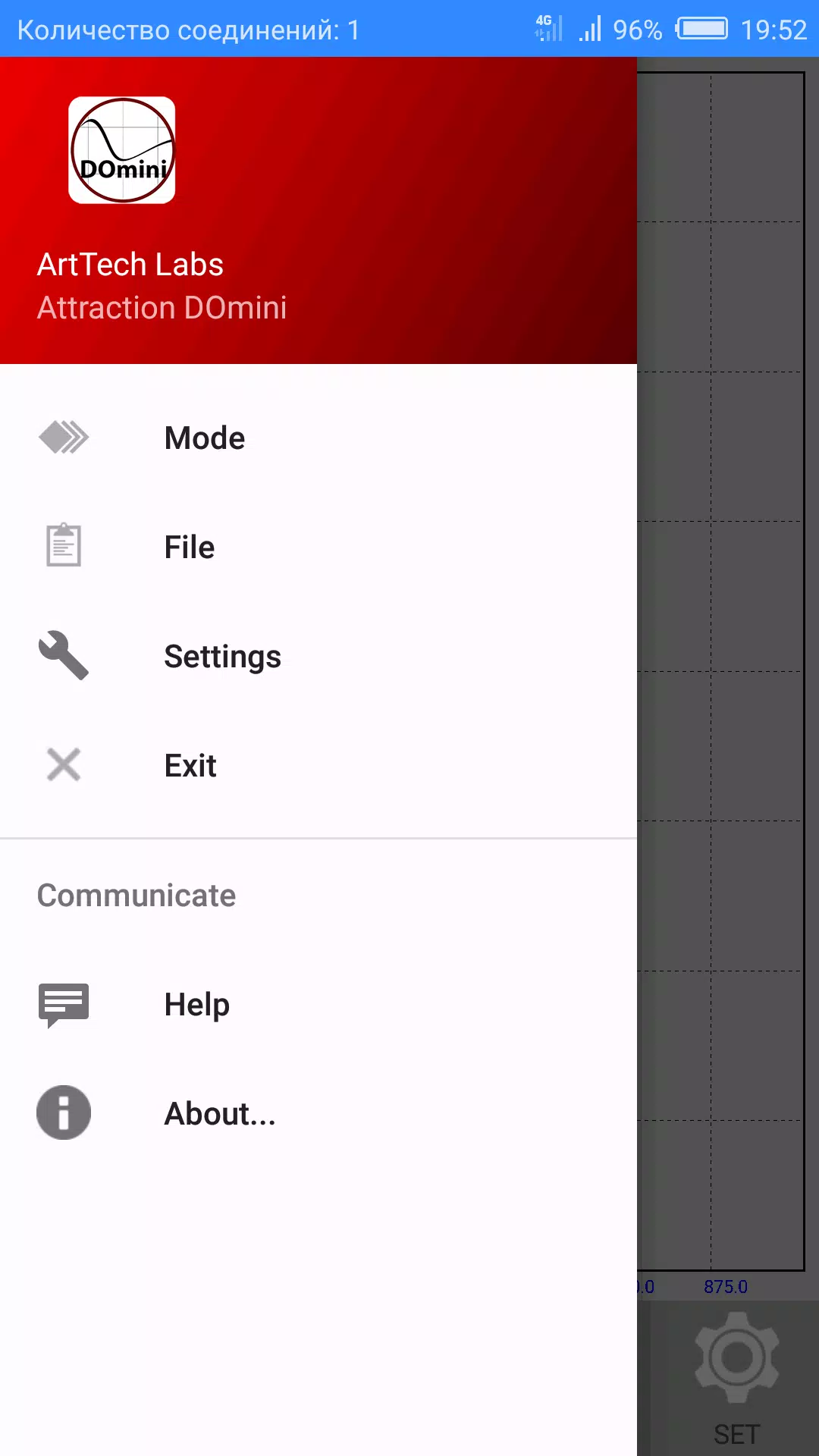

This management software and digital oscilloscope, named DOmini, offers an attractive, feature-rich package for professionals and enthusiasts alike.
The DOmini oscilloscope is an ideal tool for students, hobbyists working with Arduino or amateur radio, researchers, and electronic engineers.
Key Features:
- 6 measuring channels (4 analog + 2 digital);
- 4 operating modes: single, normal (standby), auto, and recorder;
- Event triggering to capture data leading up to an event;
- Real-time Fourier analysis;
- Waveform memory depth of 13,200 measurements (up to 26,400 as a logic analyzer);
- Analog channel sampling rate from 5,000 to 1,000,000 per second;
- Digital channel sampling rate from 5,000 to 12 million per second;
- Provides +3.3V and +5V power outputs;
- Probe calibration and custom unit configuration;
- Compatibility with standard x1 and x10 oscilloscope probes;
- Measurement voltage range: ±5V, 0-10V (±15V, 0-30V) with x1 probe;
- 10-bit ADC resolution;
- 4 digital input/output pins with PWM;
- Support for digital interfaces: SPI, I2C, UART, and 1-WIRE.
Applications:

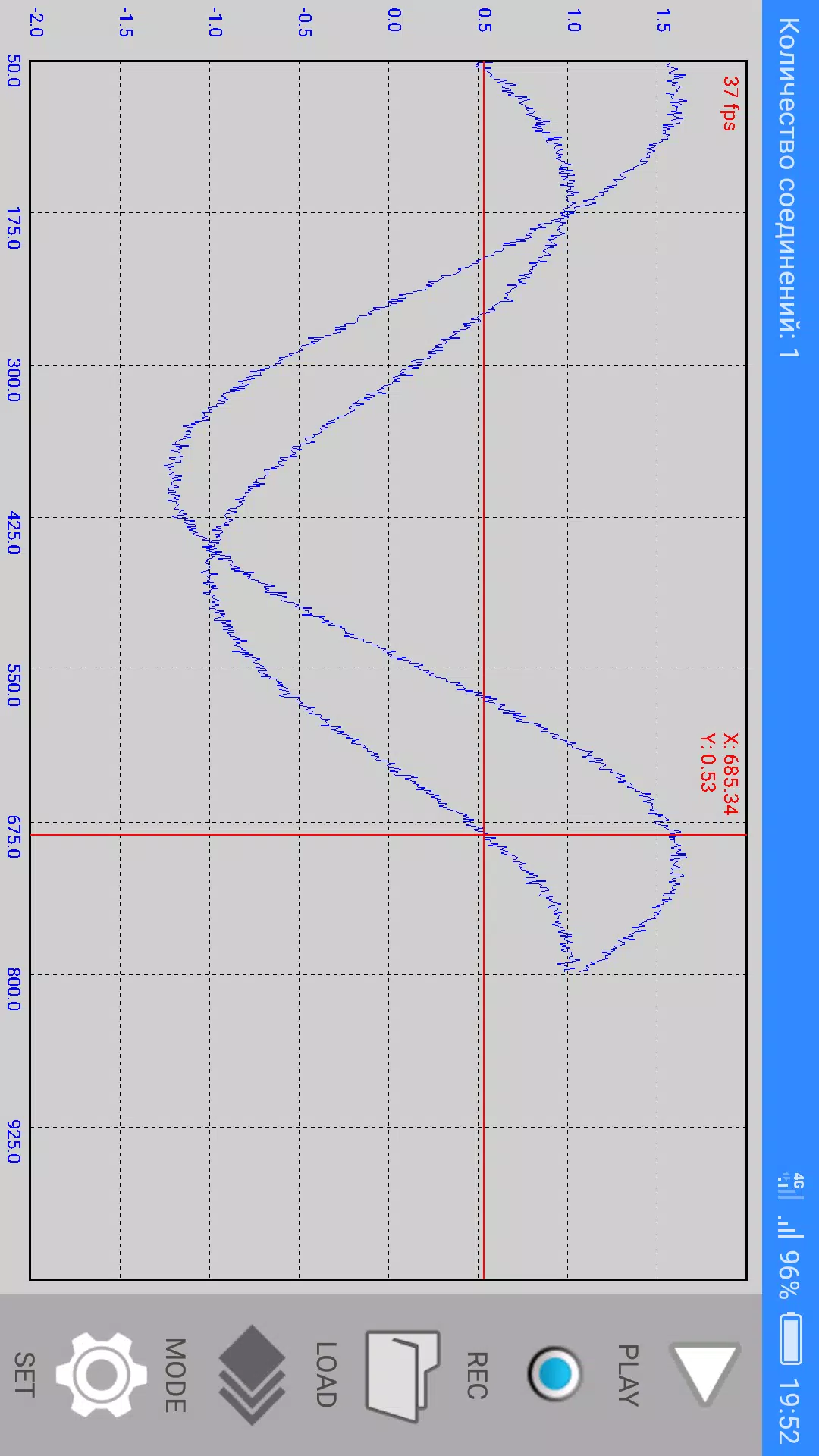

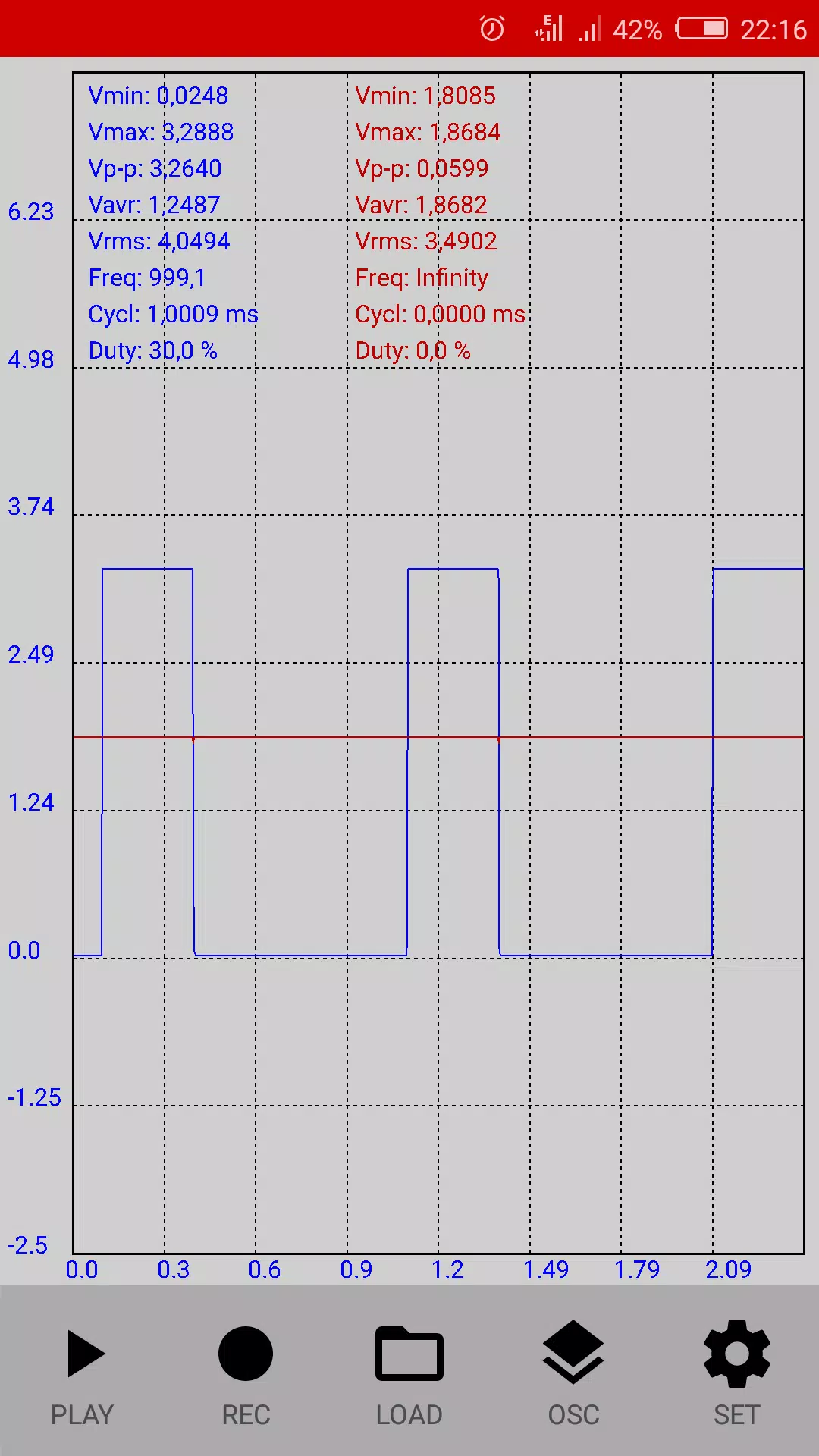

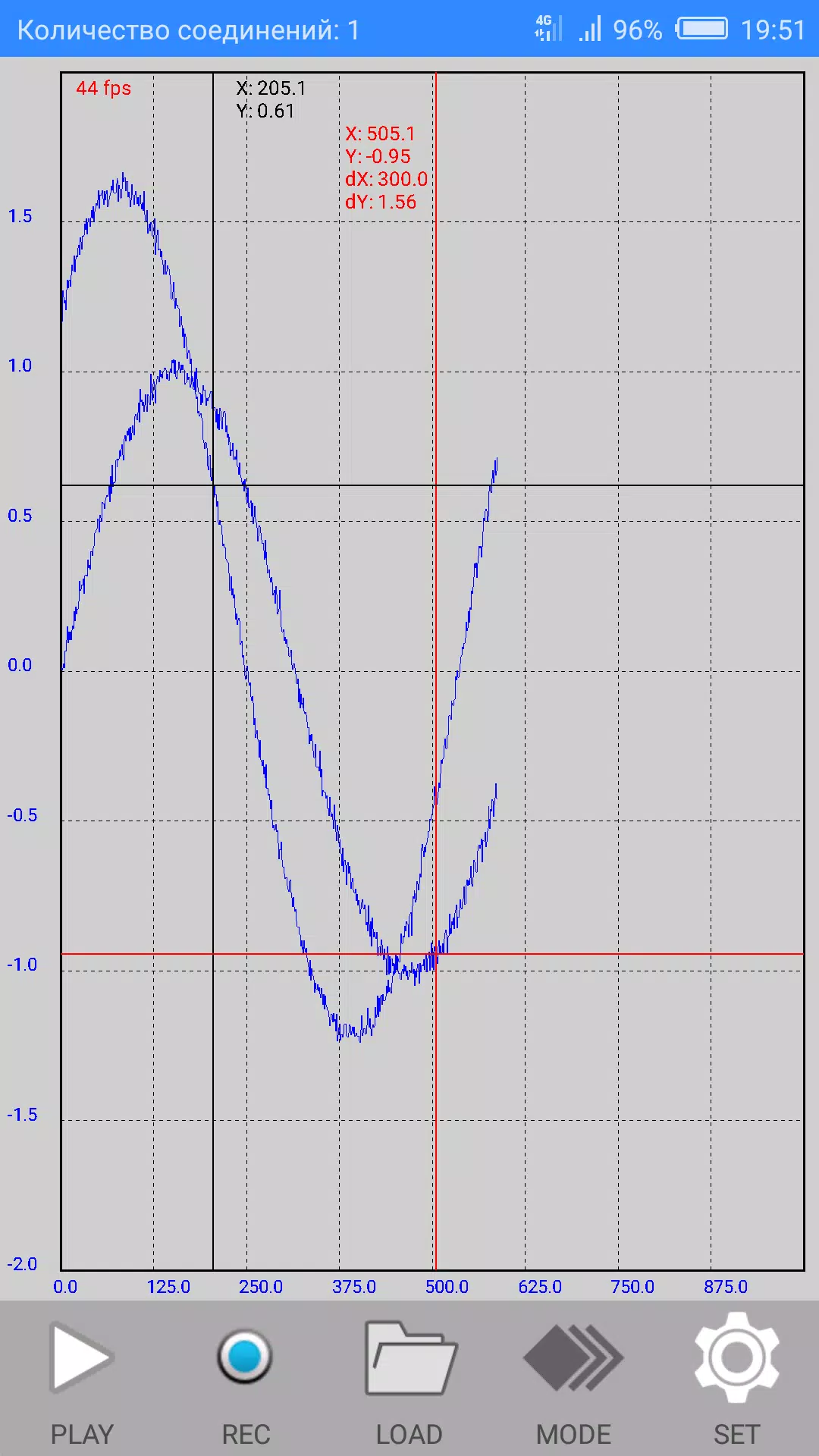

- Analyzing analog and digital signals in real-time;
- Frequency spectrum analysis via Fast Fourier Transform (FFT);
- Controlling external devices through 4 I/O ports;
- Generating PWM signals from 3Hz to 10MHz;
- Testing integrated circuits with digital interfaces (SPI, I2C, UART, 1-WIRE);
- Using it as a +3.3V and +5V power source (up to 30mA);
- Serving as a data acquisition system for various sensors (temperature, humidity, light, etc.);
- Detecting high-impedance (Z-state) conditions on input/output ports.
